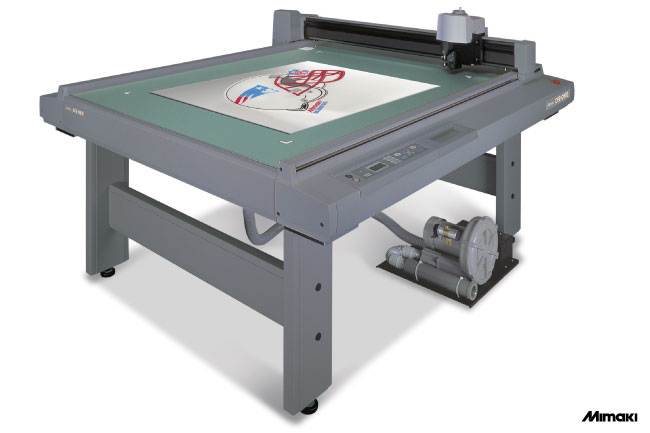

Mimaki CF2 Series Flatbed Cutting Table
The CF2 Series flat bed cutting plotter capable of cutting various kinds of media with high accuracy without dies. Out of a total of 30 kinds of line-up, you can choose the one best suited for your needs.
User-friendly, flatbed, tangential head cutting tables in a range of sizes to suit a number of applications.
The CF2 series cuts a wide range of media using a variety of heads and blades. The heads can be equipped with a tangential cutter, reciprocal cutter, marking gauge roller and swivel cutter, depending on the material that needs to be cut. Two machine sizes are available: CF2-0912 (176 x 160 cm) and CF2-1218 (236 x 190 cm).
Product Highlights
- Range of sizes up to 1.2m x 1.8m and head types for cutting a huge selection of substrates
- Vacuum bed
- Optical eye for print & cut registration
- Broad range of applications
- Offset start and end points
- Tangential and reciprocal heads
- Pressure compensation
- Use for prototyping and short run production
- Ideal print and cut solution with UJV-160 UV LED Curing inkjet printer
- Half-Cut; by adjusting the depth of cutter blade, you diecut composite and laminated material
Composite materials etc. can be half-cut.
Half-cut
By adjusting the depth of the cutter blade, you can half-cut composite, laminated material (etc). As two tools can be used, you can perform different types of half-cutting or diecutting without changing the tools.
Thick material can be outline-cut with high accuracy.
Mark-sensor function
With the adoption of a high performance color photo sensor, the round register marks printed on the media are detected and the position of the origin, inclination of coordinate and distance are adjusted. This enables the operator to perform cutting at the precise position. Further, the sensor recognizes the difference of “color of media” and “color of round register marks”, and enables the cutter to perform cuts accurately, while being tailored to the printed material without being influenced by the color of the media. A light pointer that is used as marker when setting the media is provided as standard device and facilitates position adjustment with round register marks.
Media is set easily and accurately.
With the aid of a work-guide installed to the directions of X and Y, the positioning of the media is smooth and working efficiency has been improved. It is also possible to remove the work-guide depending on the media size.
- Effective range of cutting
- Media
- Work-guide plate
- Origin seal
- Work-guide pin
*For models with sensor, work-guide plate is used instead of work-guide pin.
*Please note that the work guide is used just as a guide for setting the media and it is not intended to guarantee the distance to the origin.
Extensive line-up of cutter blades.
A wide variety of cutter blades tailored to various media are provided. As one machine can process with flexibility, expand your business opportunities. Cutter blades in the marketplace can also be used.
As the low cost cutter blades can be used, the running cost can be reduced.
PRODUCT SPECIFICATION
| CF2-0912** | CF2-1215** | CF2-1218** | ||
|---|---|---|---|---|
| Effective plotting area |
X (Sensor model) |
1,170mm(46.1″) | 1,470mm(57.9″) | 1,770mm(69.7″) |
| X (No sensor model) |
1,200mm(47.2″) | 1,500mm(59.1″) | 1,800mm(70.9″) | |
| Y | 900mm(35.4″) | 1,200mm(47.2″) | ||
| Motorization | X,Y,Z,θ 4 axes DC software servo | |||
| Maximum plotting speed | 50cm(19.7″) / s | |||
| Maximum acceleration | 0.5G | |||
| Mechanical resolution | X:0.00234mm(0.00009″) Y:0.003125mm(0.0001″) θ:0.05625 | |||
| Command resolution | 0.025mm(0.001″) / 0.01mm(0.0004″) (changeable from operation panel) |
|||
| Static accuracy *1 |
Repetition accuracy | ±0.1mm(0.004″) | ||
| Distance accuracy | ±0.1mm(0.004″) or ±0.1% whichever is greater | |||
| Origin repetition accuracy | ±0.1mm(0.004″) | |||
| Maximum thickness of set work | T / TD:25mm(1″) RT / RC:20mm(0.8″) | |||
| Work fixation | Air suction by a blower | |||
| Receiver buffer size | 1MB | |||
| Command | MGL-IIc3(Support MGL-IIc) *2 | |||
| Interface | RS-232C | |||
| Dimension | Width | 1,760mm(69.3″) or less |
2060mm(81.1″) or less |
2360mm(92.9″) or less |
| Depth | 1,600mm(63.0″) or less |
1900mm(74.8″) or less | ||
| Height | 1,100mm(43.3″) or less | |||
| Weight | 140kg(308lbs) | 165kg(364lbs) | 180kg(397lbs) | |
| Operation environment | Temperaturet : 5-40ºC Humidityt : 35-75%(Rh)No condensation |
|||
| Power requirement | Main Unitt : 50/60Hz AC100/120/220/240V(tap changing) Blowert : Stated separately |
|||
| Power consumption | Main Unit : 300VA Blowert : Stated separately | |||
Materials that can be processed
Possible to cut with standard accessories
Possible to cut with the use of optional items
| T | TF | RT | TD | RC | |
|---|---|---|---|---|---|
| Corrugated fiberboard(E to B corrugation)* | |
|
|||
| Corrugated fiberboard(AB corrugation)* | |
||||
| Coated board for packaging* | |
|
|||
| Vinyl chloride for clear package* | |
|
|||
| Plastic corrugated fiberboard | |
|
|||
| Vinyl chloride sheet for signboard | |
|
|
|
|
| Soft vinyl chloride(0.5 to 10mm) | |
|
|||
| Reflecting sheet | |
|
|
|
|
| Sand-blast rubber | |
|
|
|
|
| Industrial sheet rubber(3mm or less) | |
|
|
|
|
| Industrial sheet rubber(0.5 to 10 mm) | |
|
|||
| Pattern Happort | |
|
|
|
|
| Teflon(1.0 to 5.0mm) | |
|
|
||
| Resin belt. (5.0mm or less) | |
|
|||
| Various foam(20mm or less) | |

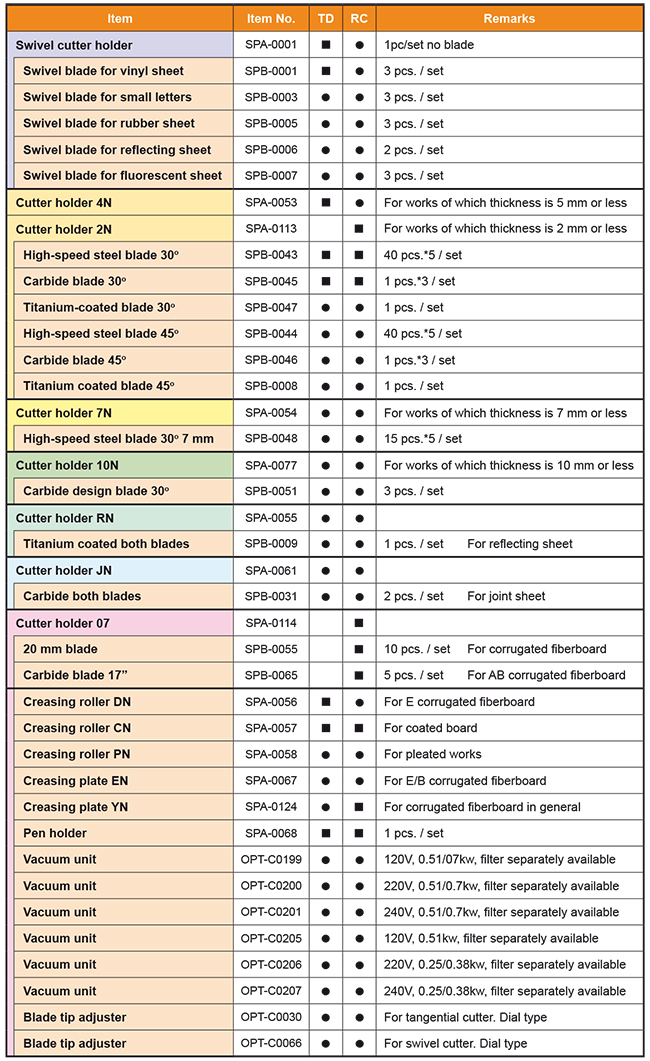

Optional Supply Items / Standard Accessories
