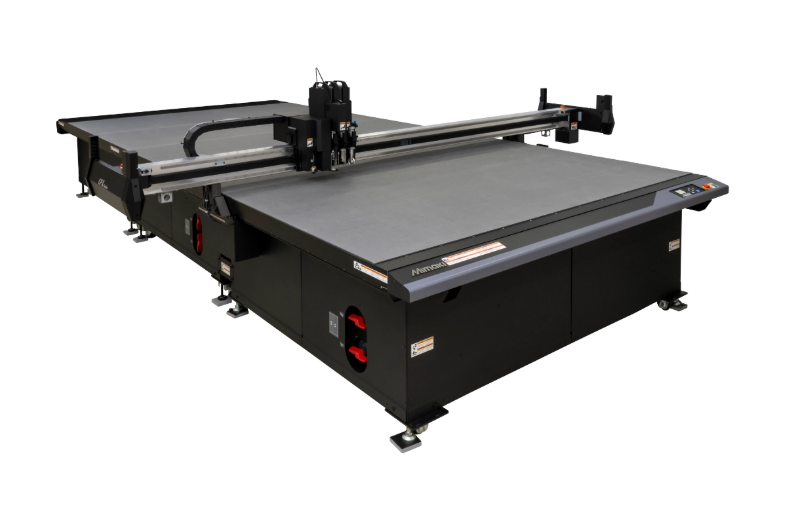

Mimaki CFX Series

The high-end flatbed cutting plotter “CFX Series” offers the highest speed and pressure in its class, as well as up to four types of tools mounted simultaneously, greatly improving processing efficiency.

In addition, a lineup of processing table sizes and tools is available to suit various applications. Even after installation, table expansion and additional tools can be added, providing long-lasting support for the growth of your business.

---

Line up: 3 table sizes *Expandable after installation

---



---



---

Two types of software – can be operated even by beginners

---

Standard bandled software

---

---

The combination of Finecut/Coat9 and the mark sensor function enables high-precision cutting while correcting the tilt and distance of coordinates.

• Direct and easy cutting from Adobe Illustrator or CorelDRAW
• Multi-Cut function to cut the same area with different pressure and other conditions
• Automatic tiling-cut function to prevent overcutting of media
• ID Cut function automates cutting the printed materials



Option software

---

Converts CAD data into optimum cutting data to maximize the capabilities of the cutting plotter.

• CAD data loading and cutting output
• Detailed cutting conditions can be set for industrial cutting, and database creation
• All pen output -Tracing function to reduce waste of expensive materials

---



---

New features for the CFX Series

---

01: V-cut function

V-cut depth of cut can be adjusted and with one click.Triple cuts can be added with a single click. Easy post-processing after machining.

02: Edge detection, backside cutting

Provides a process that maximizes the convenience of the camera (optional)

03: Toggle Function

Continuous processing without time loss in material setting (-2531, -2550 sizes supported)

---

---



---

Highest cutting speed in its class

Achieves a maximum cutting speed of 100 cm (39.4 in)/sec, which is suitable for high-end machines (approximately double that of our conventional machines).
Give a shape to your ideas right away. It contributes to the efficiency of your cutting business.

---

---

High-quality V-cut

---

The height accuracy of the entire table is automatically scaned at the time of installation and tracked during cutting.
V-cut quality is uniform across the entire work table with a maximum length of 5 m.
*The images are for illustrative purposes only.

---

---

Max. pressure 30kg, 2 types of cutting mode

---

Switchable according to material and processing method. Realizes high quality processing.

Cut mode A: Position Control Mode

Cutting of hard materials with a specified depth of cut. Also, the creasing line in the direction of the flow line of corrugated cardboard can be processed stably.

Cut mode B: Pressure Control Mode

Creasing line processing with specified pressure is also possible. Reduces ruled cracks and liner cracks in the width direction of softer corrugated board.

---

Accurate “Backside cutting” to match the print surface

---

Camera unit
Registration marks and the media edge detection

Can cut the exact position from the back side of the print. Provides high quality surface shape.

---

---

Up to 4 tools can be set at the same time: Enhanced processing efficiency and variation!

---

Standard Tool Set-Model

---

Choose from three “standard tool set models” to suit your cutting business!
Additional tools can be purchased at any time as your business grows and applications expand.

*Our flatbed printer is required to print the materials. (sold separately)

---

Set-Model 03: LC-Model
(Model Code: CFX-TR1VAD2M)

---

This set model supports the production of sign graphics in general, including cutting of acrylic and aluminum composite panel with the addition of a router unit (for milling).

---

---
