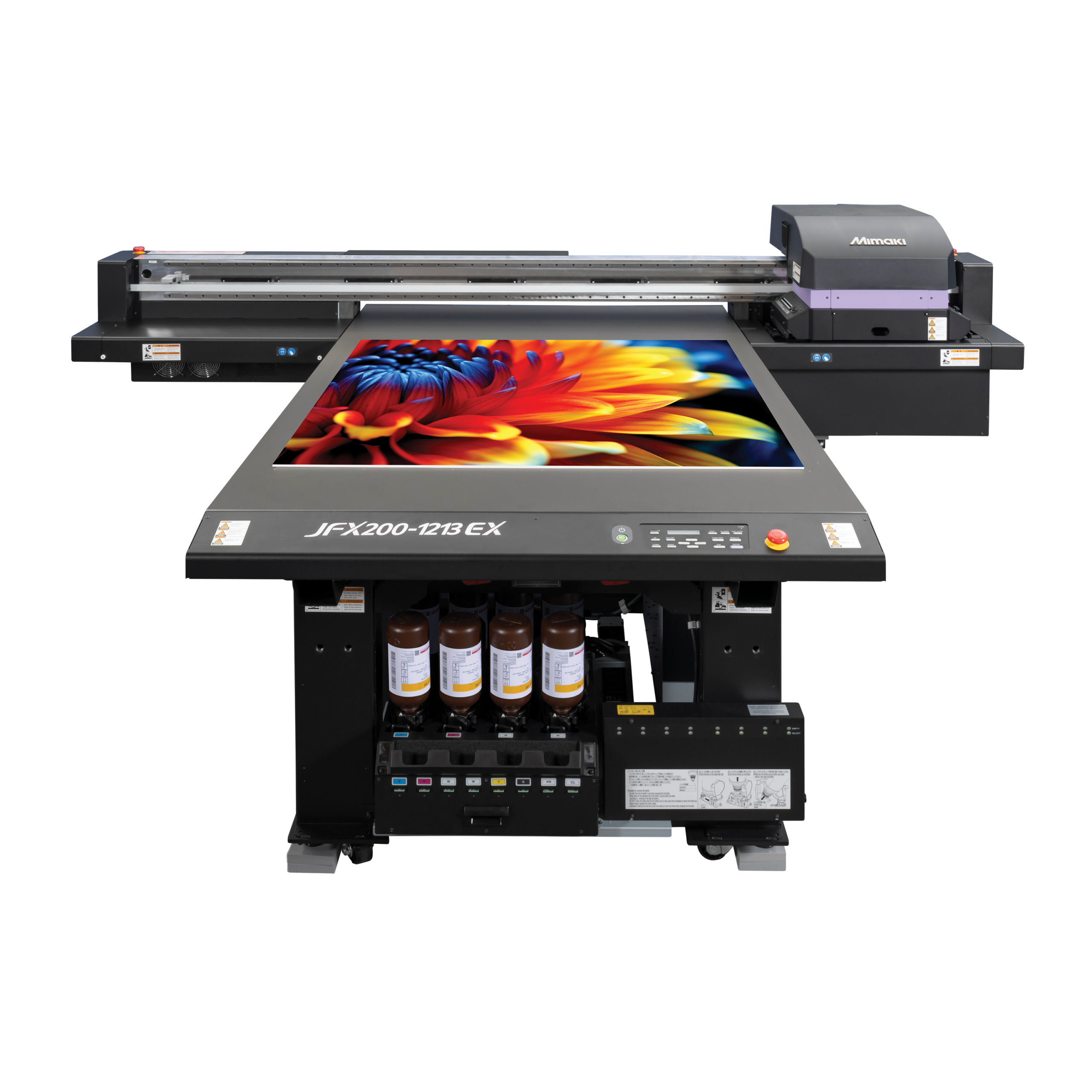

Mimaki JFX200-1213EX
The “JFX200-1213 EX” is a middle-size flatbed UV printer with about half the print size of the “JFX200-2513 EX,” which has been well received worldwide for its high image quality, high added value, and high production prints.
“Just In Size” for High Image Quality, Added Value, and Productivity
This printer is ideal for upgrading from a desktop UV printer or as an entry-level digital printing machine.
- Middle-size flatbed (up to 1270 mm × 1300 mm)
- Max. 25m²/h The highest-in-class productivity
- Even faster texture printing
- High image quality printing
- Operator-friendly user interfaces easily accessible from the front
- Mimaki’s technology for realizing stable operation
4 Key features
1. Middle-size flatbed (up to 1270 mm × 1300 mm) | Single unit – sign graphics & paper package print capability
30% less than JFX200-2513 EX body size.
Even table size supports all the international A size.
- Sign graphics use: supports A0 size sign panel
- Paper and package: supports standard coated cardboard size
2. Max. 25m²/h The highest-in-class productivity | Suitable as an upgrade from a desktop UV printer
Print speed comparison between the JFX200-1213 EX and the UJF-6042MkII e
3. Even faster texture printing | Fast, attractive and easy, added value texure printing
Increased braille printing speed. 2 types expression capability for application requirement.
All of these can be done just with standard design software and RasterLink7.
Bring texture design into shape instantly.
High-speed Braille printing that is only possible with Mimaki’s flatbed technology
Standard mode
Braille part is constructed by clear ink emboss printing. Transparent braille dots don’t interrupt the based graphic design.
High-speed mode
High-speed texture printing by bi-directional printing, utilized for braille and pictograms.
2.5D print that combines texture print and smoother bumps and dips
Automatically generates texture layering data based on graphic data in RasterLink7.
Layers UV ink to make bumpy expressions, the thicker the layers are, highlights bumpes and dips.
4. High image quality printing | Smooth gradation and high density printing
Fast and high quality production for custom goods,and signage
Waveform control
By discharging spherical ink droplets directly, depositing of droplets is facilitated and overlapping between dots is reduced, achieving a sharp print quality with low grain.
Variable dots
Three different ink dot sizes are used in printing to enable high-quality prints with reduced graininess.
MAPS (Mimaki Advanced Pass System)
Banding (horizontal stripes), uneven color, or glossy streak can be reduced to produce smooth prints by printing pass boundaries fading in gradation.
Operator-friendly UI (User Interface) and Stable operation technology
Operator-friendly user interfaces easily accessible from the front
Valve and foot switch for vacuum control
The vacuum area is divided into a front section and a rear section. The valve can be used to switch between them easily depending on the media size. The foot switch allows you to turn vacuum on/off while checking the media location.
Ink tank unit
The ink bottles can be accessed from the front side of the printer for replacement and maintenance. This minimizes the pathway to be followed by operators, increasing work efficiency.
Ink tank unit (when pulled out)
Mimaki’s technology for realizing stable operation: Auto maintenance function to shorten downtime
NCU & NRS automatically detects missing nozzles and performs recovery
NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue their operation without waiting for service representative.
Mimaki Circulation Technology (MCT) minimizes downtime
MCT is used in the ink tank and channel. The white ink is circulated at regular intervals to prevent pigment sedimentation that leads to malfunctions of the printhead.
PRODUCT SPECIFICATION
| JFX200-1213 EX | ||
|---|---|---|
| Head | On-demand Piezo head (Array of 3 heads stagger) | |
| Print resolution | 300, 450, 600, 900, 1,200dpi | |
| Ink | Type | UV curable ink : LUS-120 (C, M, Y, K, W, Cl) |
| UV curable ink : LUS-150 (C, M, Y, K, Lc, Lm, W) | ||
| UV curable ink : LUS-211 (C, M, Y, K, W, Cl) *Only available in some regions. |
||
| UV curable ink : LUS-350 (C, M, Y, K, W, Cl) | ||
| UV curable ink : LH-100 (C, M, Y, K, Lc, Lm, W, Cl) | ||
| Primer: PR-200 *1 | ||
| Ink Supply system | 1liter bottle, 250ml bottle (LH-100, LUS-120, PR-200 only) *2 | |
| Ink circulation system *3 | White ink circulation using Mimaki Circulation Technology (MCT) | |
| Maximum diagram dimensions (W×D) | 1,270×1,300 mm (50.0×51.2″) | |
| Media | Dimensions (W×D) | 1,270×1,300 mm (50.0×51.2″) |
| Height | Max. 50 mm (2.0″) | |
| Weight | Less than 50 kg/m2 (10.2 lb./ft2), non concentrated load | |
| Media absorption | Blower adsorption type + foot switch | |
| Number of absorption area partitions |
2 partitions (X-axis direction) | |
| Curing device | LED-UV system | |
| Interface | USB2.0, Ethernet | |
| Safety standard | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, RCM |
|
| Input power supply | Single phase, AC 200-240 V, 50/60 Hz, less than 12 A | |
| Power consumption | Less than 2.88 kVA | |
| Installation environment | Temperature | 15 – 30 °C (59 – 86 °F) |
| Relative humidity | 35 – 65 %Rh | |
| Accuracy maintained temperature | 20 – 25 °C (68 – 77 °F) | |
| Temperature gradient | Less than ± 10 °C/h (± 18 °F/h) | |
| Dust | Similar to standard office environments | |
| Assembled Dimensions (W×D×H) | 3,142×2,320×1,235 mm (123.7×91.3×48.6″) | |
| Weight | 510 kg (1,124.3 lbs.) | |
