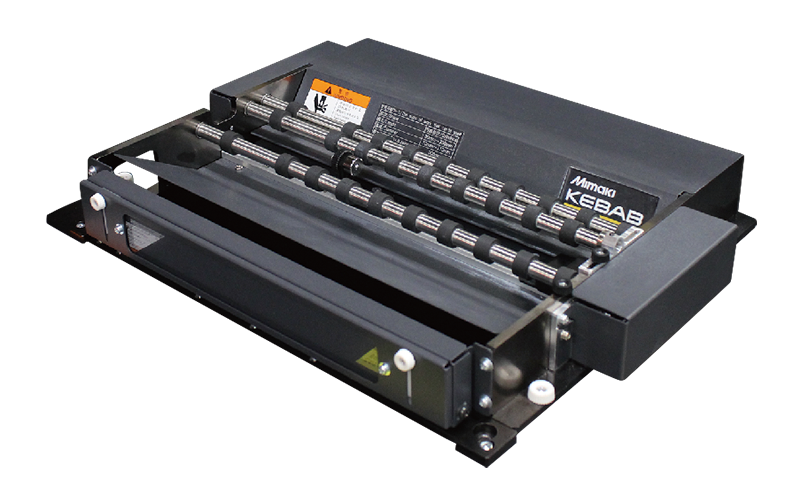

Kebab |
Kebab MKII |
Kebab MKII L |
| Part number |
OPT-J0350 |
OPT-J0428 |
OPT-J0427 |
| Supported machines |
UJF-6042, UJF-3042 HG |
UJF-3042 MkII |
UJF-6042 MkII, UJF-7151 plus |
| Maximum media rotation |
360° or more (no limitation) |
360° or more (no limitation) |
360° or more (no limitation) |
| Rotation method of media |
Friction of roller |
Friction of roller |
Friction of roller |
| Media shape |
Cylindrical |
Cylindrical |
Cylindrical |
| Media size |
Small Diameter
|
| Large diameter
|
| Width |
|
| .39 – 2.52 inches (10 -64.2mm) |
| 2.53 – 4.33 inches (64.3 – 110mm) |
| 1.18 – 12.99 inches (30 – 330mm) |
|
| .39 – 2.52 inches (10 -64.2mm) |
| 2.53 – 4.33 inches (64.3 – 110mm) |
| 1.18 – 12.99 inches (30 – 330mm) |
|
| .39 – 2.52 inches (10 – 64.2mm) |
| 2.53 – 4.33 inches (64.3 – 110mm) |
| 1.18 – 23.62 inches (30 – 600mm) |
|
| Print area |
Feed (X) direction |
| Feed (X) direction |
|
360° or more (no limitation)
| 12.99 inches (300mm) or less |
|
360° or more (no limitation)
| 12.99 inches (300mm) or less |
|
360° or more (no limitation)
| 23.62 inches (600mm) or less |
|
| Max media weight |
Small Diameter |
| Large diameter |
|
| 4.4 lbs (2.0kg) or less |
| 4.4 lbs (2.0kg) or less |
|
| 3.3 lbs (1.5kg) or less |
| 4.4 lbs (2.0kg) or less |
|
| 3.3 lbs (1.5kg) or less |
| 4.4 lbs (2.0kg) or less |
|
| Interface |
Dedicated connector |
Dedicated connector |
Dedicated connector |
| Weight |
Approx. 6.6 lbs (3kg) |
Approx. 6.6 lbs (3kg) |
Approx. 13.22 lbs (6kg) |
| Dimensions (W x D x H) |
| 16.14 x 13.4 x 2.24 inches |
| 410 x 340 x 57mm |
|
| 14.4 x 11.8 x 1.9 inches |
| 366 x 301 x 50mm |
|
| 26.53 x 11.8 x 1.9 inches |
| 674 x 301 x 50mm |
|
