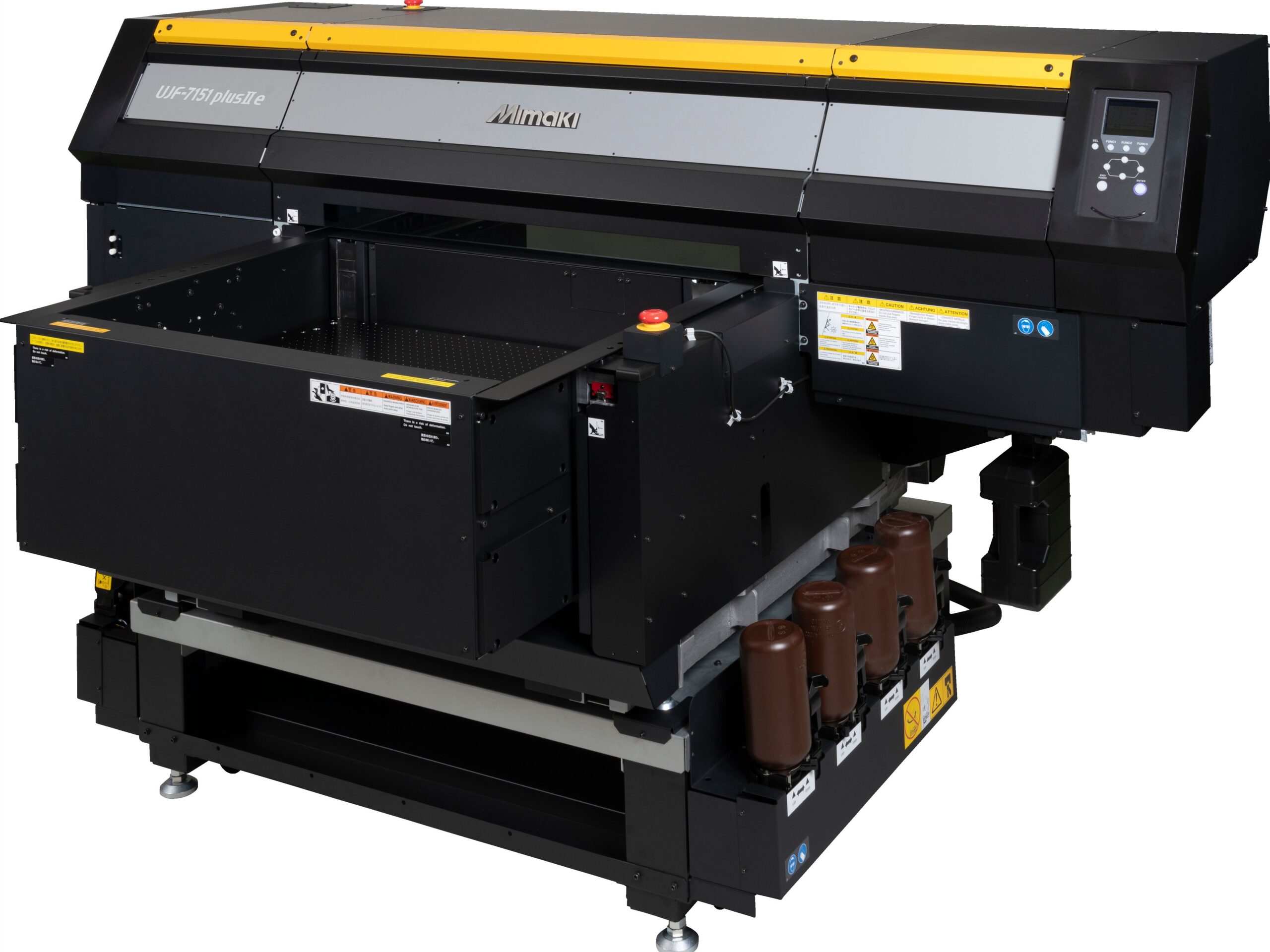

Mimaki UJF-7151 plusII e

High-Quality, High-Precision Printing: 1800 dpi maximum

---

Supports Up to 1800 dpi and 6 colors, including light colors

Equipped with 1800 × 1800 dpi mode*. Even detailed drawings and extremely fine text are reproduced beautifully and precisely.
Furthermore, the six-color configuration including light colors (Lc and Lm), enables beautiful non-grainy printing with natural, elegant gradations.
*6C+2SP ink set only

---

---

Ball screw mechanism: Mechanical structure for high-precision printing

---

Ball screws located at both sides (x-axis) of the print table stabilize table drive during printing and help produce beautiful prints.

Ball screws are also used at the z-axis side to achieve a table load capacity of 30 kg (66 lb), allowing the use of heavy materials and high-precision jigs for industrial applications.

---

High Productivity: Max. 8.0m²/h* productivity

---

An array of Eight staggered printheads achieves top-level productivity in the same product category.
The printable area is 710×510 mm (28×20 in), enabling the printing of size 636×469 mm (25 × 18.5 in), which is often used for screen printing.
*Print conditions：4C＋4C 600×600 dpi; 6 Pass

Printable area

---

---

Optional 8-head/staggered arrangements

---

With an 8-head arrangement, you can select either 6 + 2 stagger (6C + 2SP) or 4 + 4 stagger (4C + 4C/4SP).

---

---

Head arrangement	Color set	Features
6 + 2 stagger	6C + 2SP	High-quality printing with two spot colors added to the 6 colors C, M, Y, K, Lc and Lm.
4 + 4 stagger	4C + 4C	High volume production with high speed printing due to doubling the four colors C, M, Y and K.
4 + 4 stagger	4C + 4SP	Four colors C, M, Y and K as well as four spot colors enhance functionality and expressiveness.

*Head configuration is selectable at the time of installation, and later modification is also possible. Our service personnel perform such modifications.

---

Mimaki’s technology for realizing stable operation: Auto maintenance function to minimize downtime

---

NCU (Nozzle Check Unit) & NRS (Nozzle Recovery System)

---

---

Ink circulation mechanism inside the head

---

2.5D Embossed Printing: Up to 5 mm (0.2″) Thick

---

The conventional 2.5D Texture Maker now features an Emboss Mode capable of printing up to 5 mm (0.2″) in thickness. Accelerate added value and creativity.

*Embossed prints are prone to peeling and warping depending on the media and data shape. Print results may vary depending on the substrate and printing conditions, so carry out test printing in advance.

---

---

LD3 Mode: Up to 10 mm (0.4″) height differences

---

Height Difference Printing: LD Mode (Long Distance Mode)

---

---

High-Speed Primer Function: Achieves Approx. 3.7 times the Previous Speed

---

The speed of primer printing, which enhances ink adhesion, has increased to approximately 3.7 times the previous rate, significantly boosting productivity.

---

Automatic coating with inkjet primer

---

It is an inkjet primer that improves the adhesion of materials such as resin, glass, metal and those surface-finished.
Expanding the range of material selection, high value added applications can be produced.

---

---

As the primer, PR-200 is applied simultaneously with color printing, the PR-200 applying only to the necessary part of material is possible, too.
Therefore the texture of the base material that was lost by conventional manual primer applying can be maintained.
Patent number / JPN: 5817059 USA: US9,132,685 B2

---

Ink Saving Function: Reduce Ink Cosumption with Just 2 Clicks

---

With just two clicks, the “Ink Saving Function” reduces running costs. It saves up to approx. 42% in ink consumption while maintaining natural color tones.

---

---

Highly functional inks realize a variety of expressive effects

---

White

---

Printing with high-concentration white ink as the basic color on transparent or deep-color media makes full-color images more vivid.

---

Clear

---

It is a clear ink that can give an additional value such as both gloss and matte tones, texture expression according to the application. UJF-7151 plusII e mounting system for clear print control, ” MCC (Mimaki Clear Control)” allows the minimization of uncured time to prevent dust from sticking and to avoid bubble generating. It provides high-grade glossy representation and expressive embossing feeling with highly-concentrated clear to lead a fine and beautiful texture print.

---

---

Metallic

---

The MMC (Mimaki Metallic Control) is the system dedicated to metallic printing using Mimaki’s unique “Surface Imaging technology”. The MMC printing technology that separately prints one type of metallic ink in gloss and matte tones.
Using separately the beautiful glossy tone print like mirror finish and the matte tone print of metallic texture with suppressed gloss feeling will expand the range of expressions. Texture expression with embossing effect can be printed by changing the inkjet concentration. The texture expression whose appearance changes according to the light reflection provides a higher level of performance appeal. Color metallic expression is possible by printing with colored ink on top of metallic ink. By combining the application of metallic, color and color metallic, high-quality design print can be available.

---

---

Connected digital printing

---

Supports MDL (Mimaki Device Language) commands to automate the printing process

Mimaki offers command sets to enable customer production systems and peripheral devices to control our printers. Through applying these commands, the position and height of the media setting table, the start of printing, and other printer operations can be controlled. It also allows for the acquisition of remaining ink level and error information from the printer.

Regarding the MDL command, customers are able to build systems optimized to their individual applications by developing the necessary software using technical information (SDK) provided from Mimaki. The system will contribute to automation and labor saving in customers business.

---

---
