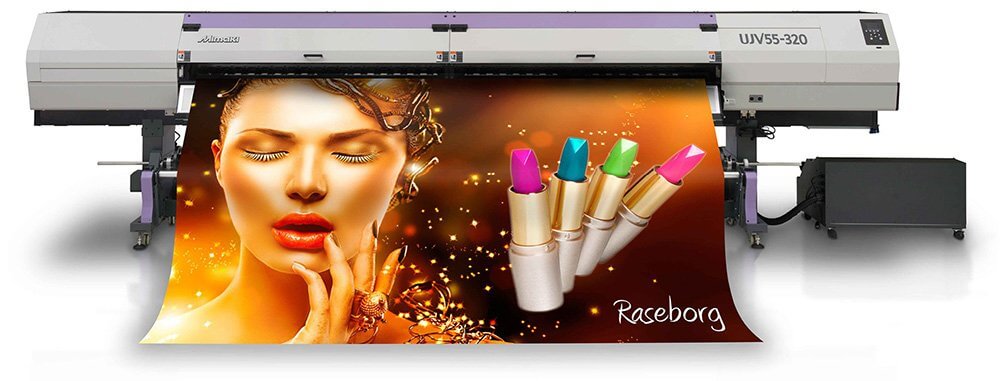

Mimaki UJV55-320
The all new Mimaki UJV55-320 grand format LED UV inkjet printer delivers a unique combination of high quality super wide output for volume production of banners, retail, exhibition and window graphics.
High performance grand format LED UV inkjet printer
The all new Mimaki UJV55-320 grand format LED UV inkjet printer delivers a unique combination of high quality super wide output for volume production of banners, retail, exhibition and window graphics and other similar applications up to 3.2m wide, with the added versatility of twin-roll simultaneous printing.
UJV55-320 delivers
- Super wide format printing (up to 3.2m)
- High speed printing up to 110m2/h
- Newly developed LUS-120 high performance UV curing ink including white
- High density print mode for front/backlit applications
- Inline LED Lightbox for backlit print inspection
- MAPS, MFD1, NCU & NRS for optimal print quality & performance
- Simultaneous twin-roll print facility
- Media roll weights up to 100kg
Applications of UJV55-320
- Indoor and outdoor signage
- Exhibition
- Display and window graphics
- Front and backlit signage
- Retail PoS
- and much more…
Features of UJV55-320
Efficient and Versatile Twin-Roll Simultaneous Printing
Taking advantage of the 3,200mm printing width, two media rolls can be mounted for simultaneous printing. Different print jobs (or the same print job) can be printed on two separate rolls. The user can select the preferred width separately for each roll, within a specified range (210 to 1,524mm).
Improved performance for backlit printing applications
White ink print enhancements
Printing on transparent media is made possible by the application of white ink as an under or over layer.
Inline LED lightbox for backlit print inspection
Proofing while printing LED backlights illuminate printed media just after printing, reproducing a backlit signage application and ensuring immediate quality inspection.
High ‘Blockout’ performance for backlit signage
A key feature of UV-curable ink is the thickness of the ink layer on the media, which enables much greater ‘blockout’ performance than other print methods. This is particularly beneficial in backlit signage applications where the ability to block out backlighting in certain areas improves overall illuminated colour performance and vibrancy.
Prevention of print quality problems – NCU
The UJV55-320 is equipped with Mimaki’s original automatic NCU. Clogged nozzles are automatically detected and cleaned by the NCU. If the clogging is not resolved by cleaning, the UJV55-320 automatically sets the nozzle recovery function NRS and resumes printing. These functions significantly reduce the waste printing caused by clogged nozzles during a continuous printing run.
Productivity maintenance – NRS
The NRS substitutes defective nozzles with non-defective nozzles until the technician arrives. This feature enables uninterrupted print operations and continuous productivity.
Print quality
Improved print head configuration
Head configuration: Four print heads in a staggered array. 1 head: 1,280 nozzles (320 nozzles X 4 lines), Y C M K 4 heads: total 5,120 nozzles.
Beautiful output
MAPS (Mimaki Advanced Pass System)
Reduces banding by dispersing ink drops between passes.
Waveform Control Technology
Ensures high quality print resolution, by jetting ink drops in straight lines with almost perfect round dots, delivering clear and sharp letters, lines and edges.
Superior inkjet technology
Delivers high density print by removing the gap between dots.
PRODUCT SPECIFICATION
| Item | UJV55-320 | |
| Head | On-demand piezo head (4 printheads / in 2 staggered array) | |
| Print resolution | 300dpi, 600dpi, 900dpi, and 1200dpi | |
| Ink droplet size | Minimum: 7pl Maximum: 36pl | |
| Head gap (Manual adjustment) | 1.7mm / 1.9mm / 2.6mm / 3.3mm (Distance between the platen and the print head) |
|
| Ink | Type | LED-UV ink LUS-120 |
| Colour | 4 – Colour (C, M, Y, K) / 7 – Colour (C, M, Y, K, Lc, Lm, W) | |
| Packaging | 1 litre ink bottle, Ink can be filled up to 3 litres per ink colour. | |
| Maximum print width | 3,200mm | |
| Maximum media width | 3,250mm (Twin rolls printing with a small drive shaft: 1,524mm × 2) |
|
| Minimum media width | 210mm | |
| Media thickness | 1.0mm or less | |
| Roll outer diameter | Large drive shafts: Φ250mm or less. Small drive shaft with roll holders: Φ180mm or less. |
|
| Roll weight | Large drive shafts: 100kg or less. Small drive shaft with roll holders: 25kg or less |
|
| Dimensions (W × D × H) | 5,410mm × 995mm × 1,440mm | |
| Shipping dimensions (W × D × H) | 5,714mm × 1,136mm × 1,203mm | |
| Weight | 910kg | |
| Power supply | AC 200 – 240V ± 10% 50/60 Hz ± 1 Hz, 18 A or less. * 100V Power not available |
|
| Power consumption | 4.3kW or less | |
| Operational environment | Temperature | 20 – 30 °C (68 – 86 °F) |
| Humidity | 35 – 65%Rh (No condensing) | |
| Temperature accuracy | 20 – 25 °C (68 – 77 °F) | |
| Temperature gradient | Less than ± 10 °C/h (± 18 °F/h) | |
| Dust | 0.15mg/m3 (Equivalent to normal office level) | |
Supplies
| Item | Colour | Item No. | Remarks |
| UV LED Ink LUS-120 |
Cyan | LUS12-C-BA-1 | 1L bottle |
| Magenta | LUS12-M-BA-1 | ||
| Yellow | LUS12-Y-BA-1 | ||
| Black | LUS12-K-BA-1 | ||
| Light Cyan | LUS12-LC-BA-1 | ||
| Light Magenta | LUS12-LM-BA-1 | ||
| White | LUS12-W-BA-1 | ||
| Flushing Liquid | FL007-Z-BA-1-KA |
