Veloblade
Perfect for Packaging, Outdoor Signage, Banners, POS, Indoor Signage

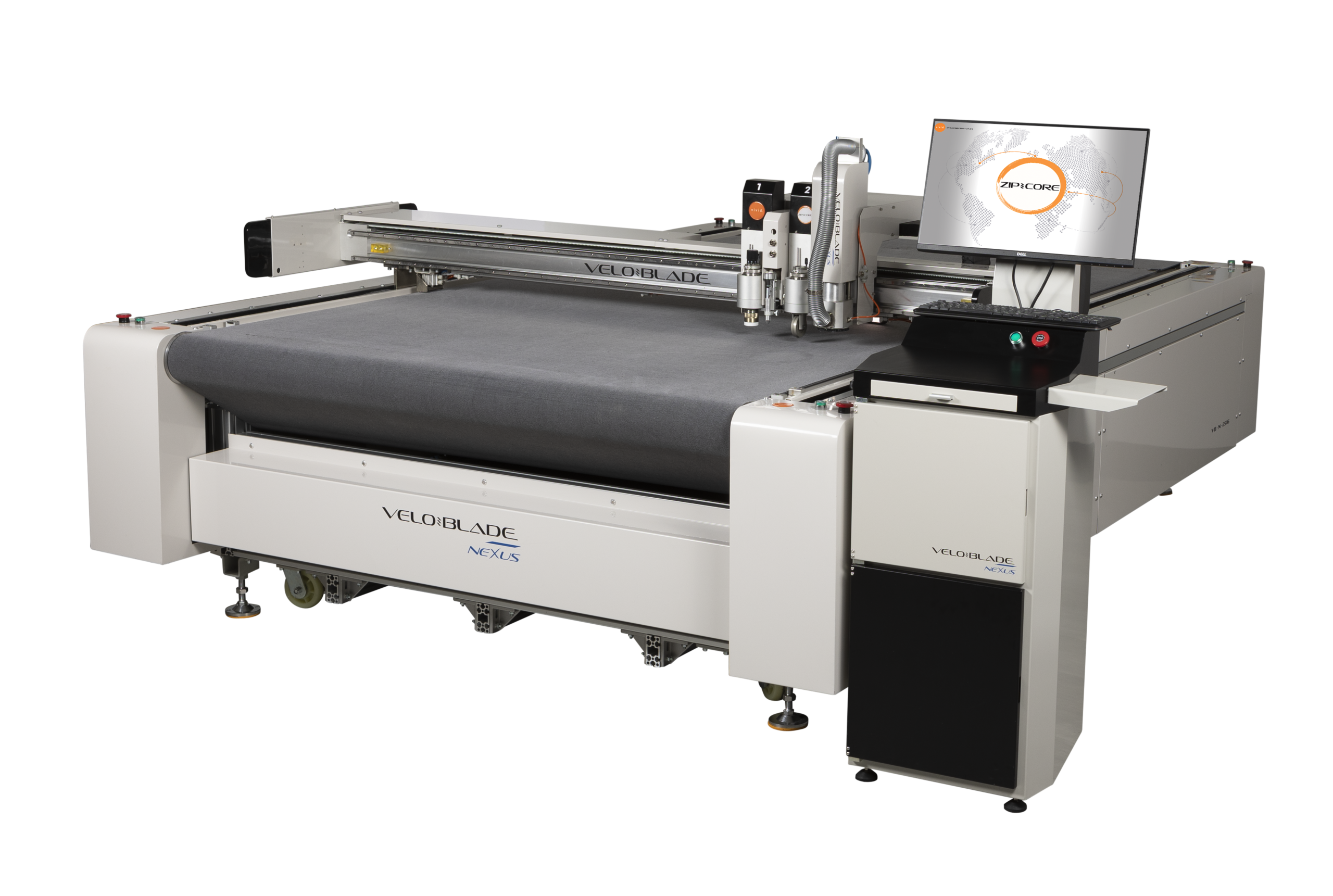

A large format digital die cutting machine with a cutting area of 3280mm x 1600mm. The CNC router, enables you to work with stocks up to 25mm in thickness, including; Dibond, MDF, acrylic and much more.
Another fantastic feature this Nexus 3016 boasts is its automatic cut depth setting. This drastically increases setup and operating speed, making the operator’s job easier and more efficient. Efficiency was one of the key considerations when this system was put together, also contributing to an efficient workplace is the rotating bed that enables roll and sheetfed production.
As well as cutting up to 25mm of harder stocks, the Nexus will also complete the same work as the VeloBlade Volta range, including kiss-cutting labels, corrugated packaging and more.
Key Features
- Automatic Tool Changer
- CNC Router for 25mm Cut Depth
- Optional Reel to Reel and Sheet Fed
- Cut, Crease & Perf in A Single Pass
- User-friendly Software Package Included
- 1500mm/s cutting speed
- Over 100 blades to choose from
PRODUCT SPECIFICATION
| Material Fixing | Vacuum |
|---|---|
| Max. sheet size (mm/inches) | 3280mm x 1600mm / 129″ x 63″ |
| Min. sheet size (mm/inches) | 210mm x 297mm / 8″ x 12″ |
| Tools | Circular Knife, Drag Knife, Crease Wheel, Kiss Cut Knife, V-Cut Knife, Oscillating Knife and CNC Router (Optional) |
| Blade | Over 100 Options |
| Max. cutting speed | 1500mm/s |
| Max. cut depth | 25mm with Oscillating Knife / CNC Router |
| Cutting Media | AS PP Paper, Label, PVC Board, KT Board, Foamed PVC Board, Acoustic Panels, Acrylic Sheet, Dibond, Vinyl, Corrugated Paper, Honeycomb Board and many more |
| Repeat accuracy | ±0.1mm |
| Driving System | Imported Intelligent Digital Servo Control System |
| Camera registration system | CCD Registration System |
| Voltage | 32 Amp / 3 phase socket required & 4 × 13 Amp sockets for accessories |
| Power Consumption (W) | 11500 |
| Overall Dimensions (mm) | 4280 x 2402 x 1200mm |
| Gross Machine Weight | 1218kg |
